Introduction

I have decided to rebuild and update the DTC2 executable version into a browser-based application. DTC2 is now fully web-based and can be accessed directly through the browser, offering greater flexibility and easier access from various devices. The main functions remain the same as in the DTC.exe version. The new version is called DTC2 Online.

What is DTC2 online

DTC2 online is an application for deactivating or deleting DTCs from an ECU Flash Dump. It allows you to remove individual error codes from the ECU. Additionally, the software includes a function to export DTCs from MEDC17, EDC16, MED9, ME7, and MDG1 to an A2L file, which can be used in other software like WinOLS, etc. Furthermore, it has a comparison function that enables you to compare two files. There are also updates and new solutions.

Why DTC2 is now Web-based

The problem with DTC2.exe is that it has grown larger than expected, making it difficult to maintain the software for all users. Additionally, users can sometimes be very challenging. I strive to answer all support questions, but it can sometimes take a few days. During this time, some users send multiple emails, which can be overwhelming. DTC2 online has a very good file identification system, which should eliminate the first user errors. If a file does not work, it is not possible to open a ticket manually. In the past, multiple tickets were opened for the same file. Now, the software automatically creates a ticket, allowing me to see and fix any issues more efficiently.

There are also Updates and new Solutions you can find Infos about it in the News section.

Also such problems like:

• HW-ID changes when an external HDD is connected.
• DTC2 is incompatible with virtual machines.
• DTC2 does not function on Windows ARM systems.
• DTC2 is not supported on Windows XP (seriously!).
• Is detected as Virus!?

I am aware that the new version has some drawbacks. For example, the biggest issue for me personally is that DTC OFF files are always saved in the browser's default download folder. Unfortunately, I cannot change the destination where the files are stored. Strangely, several users have pointed out to me that they now always need an internet connection, but that was already the case with the DTC2 executable.

But now, let's move on to the advantages:

• You can now use DTC2 on any device that has a modern web browser.
• The speed! Anyone who has worked with a VAG MED17.x on DTC2 knows it could take about 5 minutes to find DTCs. Now, it takes just 10 seconds.
• Updates are much easier to implement.

What browser do I need? I testted DTC2 online with the following browsers:

• Google Chrome
• Mozilla Firefox
• Microsoft Edge

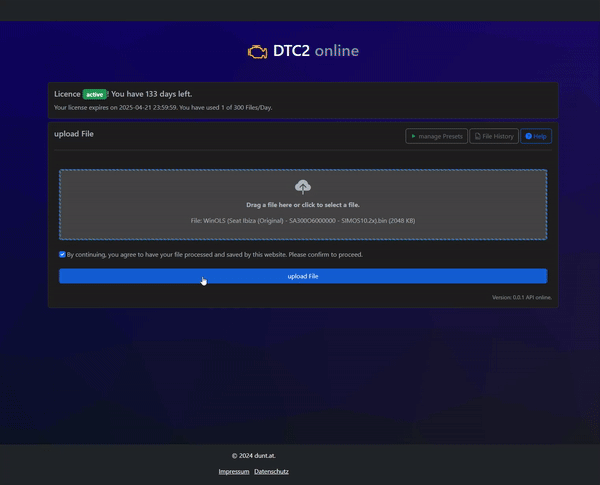

How it works

You can use the same login data as in DTC2.exe. If you don't have an account, you can create one here. After that, you need a valid license to use the software. Then you can start uploading your file and begin working with it.

How do I get a license? Users with a DTC2.exe license can now import their license into DTC2 online. New licenses and renewals are available in the webshop.

Is there no HW-ID anymore? Yes, the HW-ID is no longer needed. Can I share my account with all my friends? No, the account is still personal and can only be used simultaneously for the number of HW-IDs you have. For example, if you had 2 HW-IDs, you can be logged in with 2 sessions. If a third login occurs with this account, the oldest session will be canceled. Additionally, if you share your account, it will be blocked ;).

What does "2 sessions" mean exactly? You can use DTC2 online on two devices at the same time. If you log in on a third device, the oldest session will be automatically terminated.

FAQ

What is DTC2 online?

DTC2 online is an application for deactivating or deleting DTCs from an ECU Flash Dump. It allows you to remove individual error codes from the ECU.

How do I get a license?

Old DTC2.exe users can import their license from the old DTC2.exe (Look at the Main Page). All users, new and old can buy a license in the Webshop soon (End January 2025).

Is it possible to use the old DTC2.exe?

Simple: NO! The old DTC2.exe is no longer supported. The new version is DTC2 online it will fully replace DTC2.exe.

My file is not working, what can I do?

If the ECU is on the supported ECU's List, you can open a ticket. If not, you can't use the software. Non-working files are also sent automatically to me, and I will look at them when I have time.

What do you do with my uploaded files.

Indeed, it's a good question. But no worries, this is not a file collecting software. You can see your uploaded files in the DTC2 online file history. I have many users with many files, so I don't have much space to store files permanently. Therefore, after a minimum of 6 hours, the files are deleted.

My TIP: If you have such a unique tune/solution that nobody should see, I am sure you are able to do the DTC OFF by yourself!

I don't found DTC PXXXX

In ECU you can only deactivate ECU Errors!!! No ABS, BCM, Light etc. Errors (Yes from time to time I get such questions)

Some ECUs have a "slave" module most time Adblue ECU like DCU17CPXX what have a own DTC table! So you read AdBlue DTCs from the ECU but cant find them in DTC2 Software. So if you make AdBlue off pay attention to the correct application of the solution if there is somthing like "diconect Adblue Modul".

On VAG and VCDS don't always believe the DTC description. Also deactivate the MAN Code.
Example:
16619 - Ladedruckregelung
P0235 - 000 - Regelgrenze unterschritten

If you don't found P0235 search for 16619.

On BMW DTC Codes often displayed with 3 Bytes, search only first 2 Bytes:
Example:
12BB01 - Oxygen Sensor After Catalytic Convertor

12BB01 dont't found search for 12BB.

Status   OFF   but via Diag DTC still there.

There can be many reasons for this, but in most cases, this is how it behaves.

Sometimes it is not entirely clear whether DTC is ON or OFF. For example, DTC2 Online only checks the path, not the disable mask. Also, do not always rely solely on whether it is marked as ON or OFF. Turn off the DTC anyway and test the file.

Correct DTC2 online the Checksum?

NO! DTC2 online doesn't correct any checksums. You need to do it by yourself with WinOLS or like in most cases your flashing tool makes the checksum.

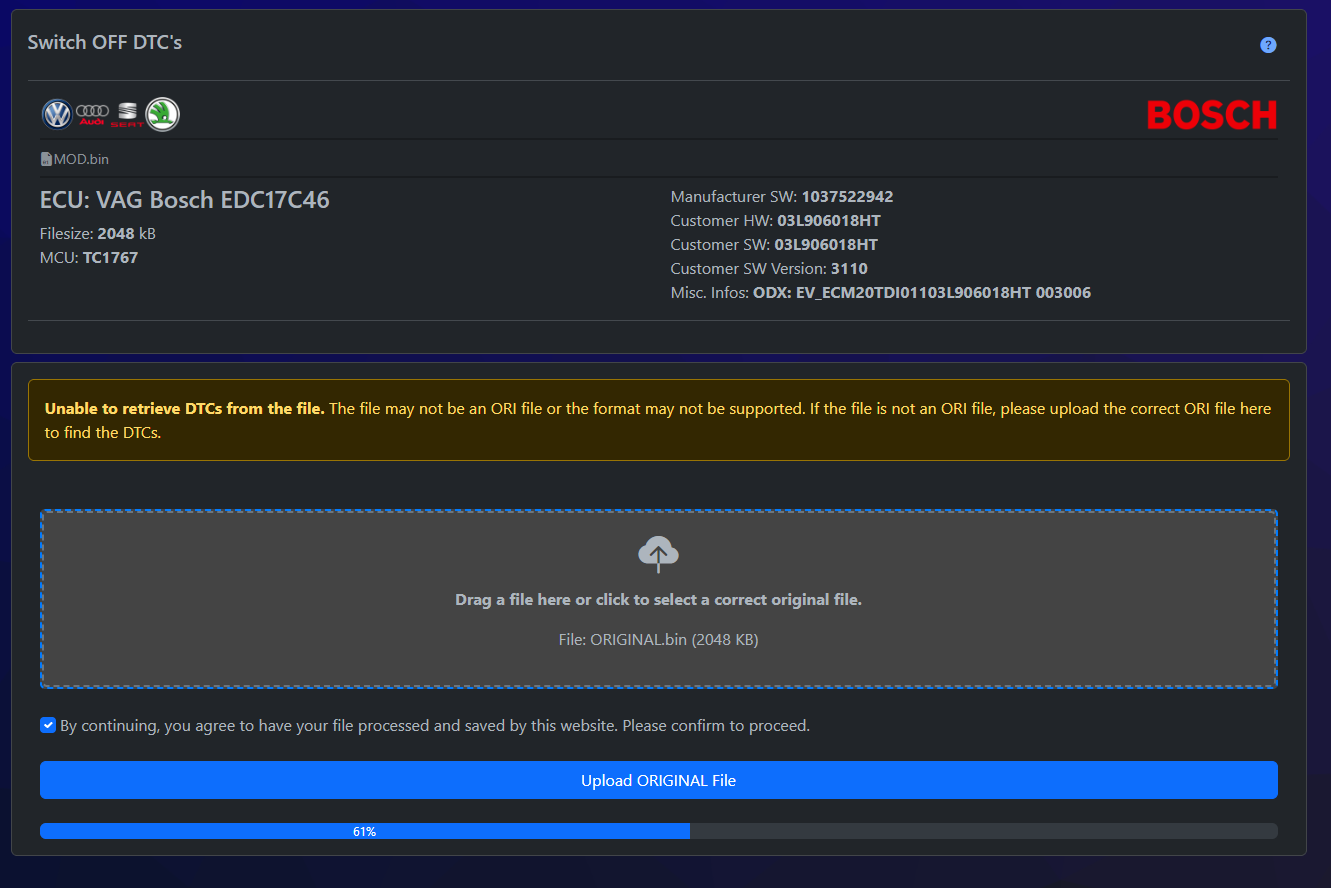

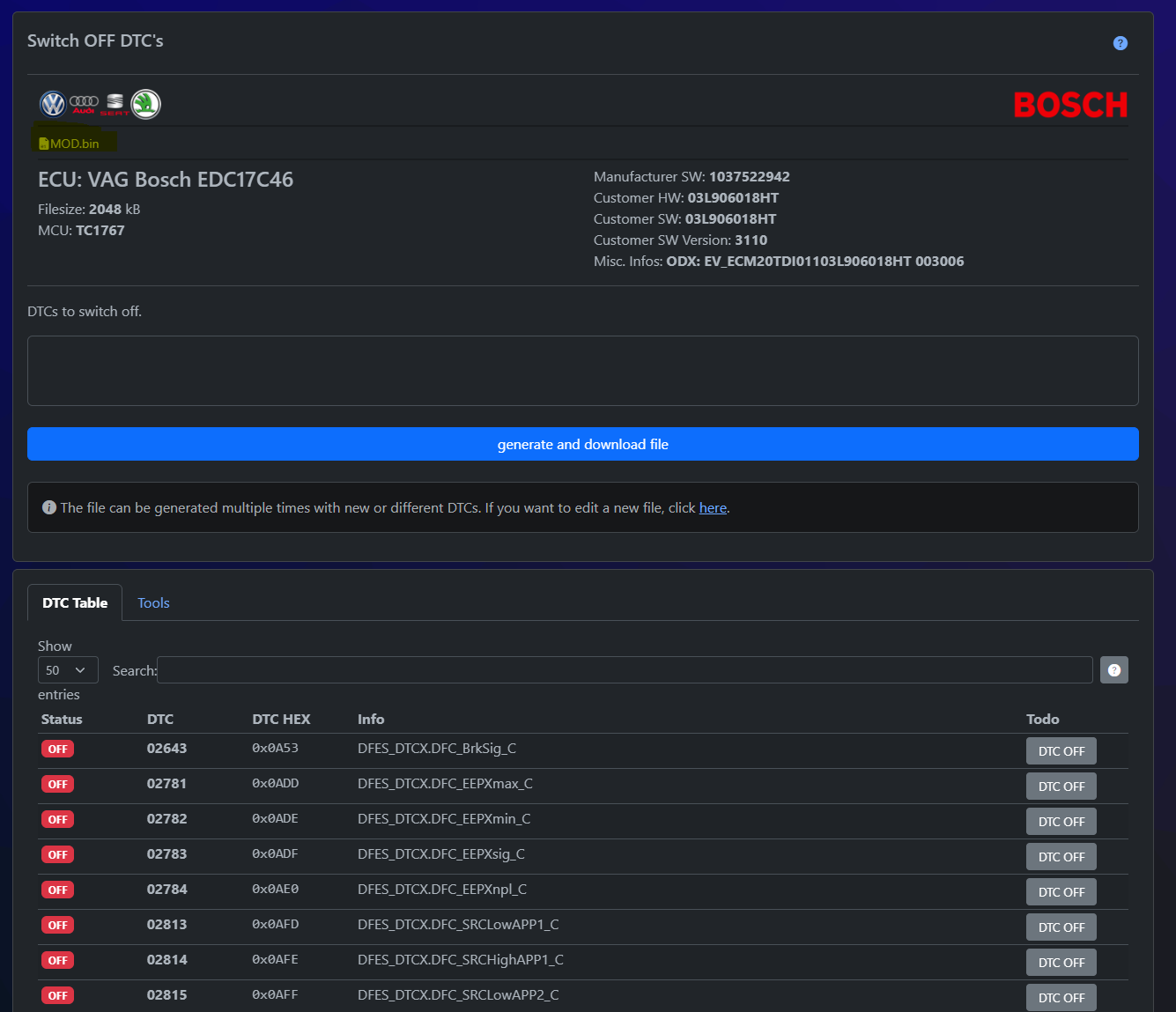

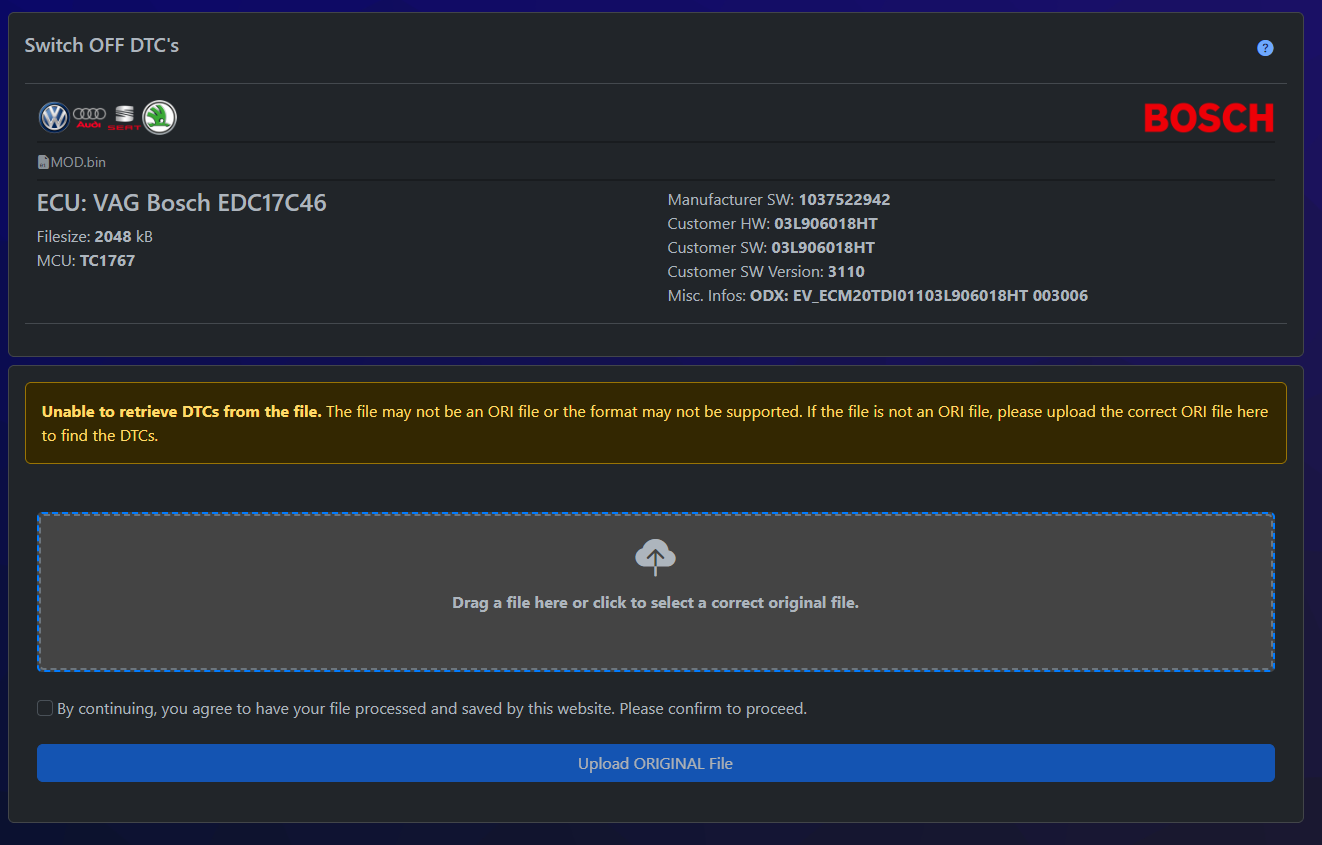

What can i do when DTC found in my original file but not in my moded file?

You need to know whether the start or the end of any table has changed. It is not possible to find the correct pattern to identify a table with 100% accuracy in every file. Fortunately, I added a feature that allows you to upload the original file after a modified file was not detected correctly. Than the found offsets from the original file are used to search in the modified file.

supported ECUs

Typ	Manufacturer	ECU	Tools
CAR	Alfa Romeo	Bosch EDC16C8
CAR	Alfa Romeo	Bosch MED17.3.3
CAR	BMW	Bosch EDC16C31/35
CAR	BMW	Bosch EDC16CP35
CAR	BMW	Bosch EDC17C06
CAR	BMW	Bosch EDC17C41
CAR	BMW	Bosch EDC17C50/56
CAR	BMW	Bosch EDC17C76
CAR	BMW	Bosch EDC17CP02
CAR	BMW	Bosch EDC17CP09
CAR	BMW	Bosch EDC17CP45
CAR	BMW	Bosch MD1CP002
CAR	BMW	Bosch MD1CP032
CAR	BMW	Bosch MD1CS001
CAR	BMW	Bosch MD1CS015
CAR	BMW	Bosch ME9.2
CAR	BMW	Bosch ME9.2.1
CAR	BMW	Bosch ME9.2.2
CAR	BMW	Bosch MED17.2
CAR	BMW	Bosch MEV9.2
CAR	BMW	Bosch MEVD17.2.x
CAR	BMW	Bosch MG1CS003
CAR	BMW	Bosch MG1CS024
CAR	BMW	Bosch MG1CS049
CAR	BMW	Bosch MG1CS201
CAR	BMW	Bosch MG1CS221
CAR	BMW	Siemens MSD80
CAR	BMW	Siemens MSD81
CAR	BMW	Siemens MSD85
CAR	BMW	Siemens MSV70
CAR	BMW	Siemens MSV80
CAR	BMW	Siemens MSV90
BIKE	BMW Moto	Bosch ME17.2.4x
HEAVY	CNH	Bosch EDC17C49
HEAVY	CNH	Bosch EDC17CV41
HEAVY	CNH	Bosch EDC7UC31
HEAVY	CNH	Bosch MD1CE101
HEAVY	CNH	Bosch MD1CS069
HEAVY	Deutz	Bosch EDC17CV52
CAR	Ferrari	Bosch MED9.6.1
CAR	Fiat	Bosch EDC16C39
CAR	Fiat	Bosch EDC17C49
CAR	Fiat	Bosch EDC17C69
CAR	Fiat	Bosch EDC17CP52
CAR	Fiat	Bosch MD1CS069
CAR	Fiat	Bosch ME17.3.0
CAR	Fiat	Bosch ME7.9.10
CAR	Fiat	Magneti Marelli MJD6F
CAR	Fiat	Magneti Marelli MJD8F
CAR	Fiat	Magneti Marelli MJD9F
CAR	Ford	Delphi DCM3.5
CAR	Ford	Delphi DCM6.1
CAR	Ford	Bosch DCU17PC43
CAR	Ford	Bosch EDC17C10
CAR	Ford	Bosch EDC17C70
CAR	Ford	Bosch EDC17CP05
CAR	Ford	Bosch EDC17CP42
CAR	Ford	Bosch EDC17CP65
CAR	Ford	Continental EMS2204
CAR	Ford	Continental EMS2205
CAR	Ford	Continental EMS2207
CAR	Ford	Continental EMS2211
CAR	Ford	Bosch MD1CP061
CAR	Ford	Bosch MD1CP062
CAR	Ford	Bosch MD1CS005
CAR	Ford	Bosch MD1CS025
CAR	Ford	Bosch MD1CS027
CAR	Ford	Bosch MED17.0 (fullread)
CAR	Ford	Bosch MED17.0.1
CAR	Ford	Bosch MED17.0.7 (fullread)
CAR	Ford	Bosch MEDG17.0 (fullread)
CAR	Ford	Bosch MG1CS015 (fullread)
CAR	Ford	Bosch MG1CS016 (fullread)
CAR	Ford	Bosch MG1CS017 (fullread)
CAR	Ford	Bosch MG1CS018 (fullread)
CAR	Ford	Bosch MG1CS019 (fullread)
CAR	Ford	Bosch MG1CS036 (fullread)
CAR	Ford	Bosch MG1CS040 (fullread)
CAR	Ford	Bosch MG1CS055 (fullread)
CAR	Ford	Siemens SID202
CAR	Ford	Siemens SID206
CAR	Ford	Continental SID208
CAR	Ford	Continental SID209
CAR	Ford	Continental SID211
CAR	Ford	Continental SID212
CAR	Ford	Continental SID213
CAR	Ford	Siemens SID803
CAR	Ford	Siemens SID807
CAR	GM	AC-Delco E92
CAR	GM	Bosch EDC17CP18
CAR	Honda	Bosch EDC17C58
CAR	Honda	Bosch EDC17CP06
CAR	Honda	Bosch EDC17CP16
CAR	Honda	Bosch EDC17CP50
CAR	Honda	Bosch MED17.9.3
CAR	Hyundai-Kia	Delphi DCM6.2AP
CAR	Hyundai-Kia	Bosch DCU17PC42/43
CAR	Hyundai-Kia	Bosch EDC16C39
CAR	Hyundai-Kia	Bosch EDC17C08
CAR	Hyundai-Kia	Bosch EDC17C53
CAR	Hyundai-Kia	Bosch EDC17C57
CAR	Hyundai-Kia	Bosch EDC17CP14
CAR	Hyundai-Kia	Bosch MD1CS012
CAR	Hyundai-Kia	Bosch ME17.9.11
CAR	Hyundai-Kia	Bosch ME17.9.21
CAR	Hyundai-Kia	Delphi MT86
CAR	Hyundai-Kia	Continental SIM2K-14x
CAR	Hyundai-Kia	Continental SIM2K-24x
CAR	Hyundai-Kia	Continental SIM2K-25x
CAR	Hyundai-Kia	Continental SIM2K-34x
CAR	Isuzu	Bosch EDC17C83
CAR	Isuzu	Transtron TTi
CAR	Iveco	Bosch EDC16C39
CAR	Iveco	Bosch EDC16C8
CAR	Iveco	Bosch EDC17C49
CAR	Iveco	Bosch EDC17C69
CAR	Iveco	Bosch EDC17CP52
CAR	Iveco	Bosch EDC7UC31
CAR	Iveco	Bosch MD1CS069
HEAVY	JCB	Delphi DCM3.3+
CAR	Jeep	Bosch EDC17C49
CAR	Jeep	Bosch EDC17C69
CAR	Jeep	Bosch EDC17C79
CAR	Jeep	Bosch EDC17CP27
CAR	Jeep	Continental GPEC2
CAR	Jeep	Continental GPEC2a
CAR	Jeep	Continental GPEC4
CAR	Jeep	Motorola NGC4/NGC5
HEAVY	John Deere	Phoenix L21/22/23
HEAVY	John Deere	Phoenix L3x	💎
HEAVY	John Deere	Phoenix L4x	💎
CAR	Land Rover	Bosch EDC17CP11
CAR	Land Rover	Bosch EDC17CP42
CAR	Land Rover	Bosch EDC17CP55
CAR	Land Rover	Bosch MD1CP007
CAR	Land Rover	Bosch MED17.0
CAR	Land Rover	Bosch MED17.8.3
CAR	Land Rover	Bosch MED17.8.31
CAR	Land Rover	Bosch MED17.8.32
CAR	Land Rover	Bosch MED17.9.7
CAR	Land Rover	Bosch MED17.9.9
CAR	Land Rover	Bosch MEDC179
CAR	Land Rover	Bosch MG1CS028
CAR	Land Rover	Siemens SID203
HEAVY	MAN	Bosch EDC17C32
HEAVY	MAN	Bosch EDC17CV42
CAR	MB	Delphi CPC2.x
CAR	MB	Delphi CRD.11
CAR	MB	Delphi CRD2
CAR	MB	Delphi CRD3.x
CAR	MB	Bosch DCU17PC42
CAR	MB	Bosch EDC16C2
CAR	MB	Bosch EDC16C32
CAR	MB	Bosch EDC16CP31
CAR	MB	Bosch EDC16CP36
CAR	MB	Bosch EDC17C66
CAR	MB	Bosch EDC17CP01
CAR	MB	Bosch EDC17CP10
CAR	MB	Bosch EDC17CP46
CAR	MB	Bosch EDC17CP57
CAR	MB	Bosch MD1CP001
CAR	MB	Bosch MD1CS006
CAR	MB	Bosch ME9.7
CAR	MB	Bosch MED17.7.x
CAR	MB	Bosch MED9.7
CAR	MB	Bosch MG1CP002
CAR	MB	Continental SIM271DE
CAR	MB	Continental SIM271KE
CAR	Mazda	Bosch DCU17PC42
CAR	Mazda	Denso GEN. 4 Diesel (S801/SH9V)
CAR	Mazda	Mitsubishi GEN. 4 Petrol (PYFA)
CAR	Mazda	Denso GEN. 4 Petrol (PYFB)
CAR	Mazda	Denso R2xx
CAR	Mazda	Denso RFxx
CAR	Mazda	Denso SH72543 Petrol
CAR	Mazda	Denso SHxx
CAR	Mazda	Siemens SID807
CAR	Opel	Denso DEC
CAR	Opel	AC-Delco E78
CAR	Opel	AC-Delco E80
CAR	Opel	AC-Delco E83
CAR	Opel	AC-Delco E87
CAR	Opel	AC-Delco E98
CAR	Opel	Bosch EDC16C39
CAR	Opel	Bosch EDC16C9
CAR	Opel	Bosch EDC17C18
CAR	Opel	Bosch EDC17C19
CAR	Opel	Bosch EDC17C59
CAR	Opel	Bosch EDC17CP47
CAR	Opel	Bosch PSG16
CAR	PSA	Delphi DCM3.5
CAR	PSA	Delphi DCM6.2A
CAR	PSA	Delphi DCM7.1A/B
CAR	PSA	Bosch EDC16C34
CAR	PSA	Bosch EDC17C10
CAR	PSA	Bosch EDC17C60
CAR	PSA	Bosch EDC17CP42
CAR	PSA	Bosch MD1CS003
CAR	PSA	Bosch ME17.9.52/53
CAR	PSA	Bosch MED17.4.x
CAR	PSA	Bosch MG1CS042
CAR	PSA	Continental SID208
CAR	PSA	Siemens SID803
CAR	PSA	Siemens SID803A
CAR	PSA	Siemens SID807
CAR	PSA	Continental V(D)56.1
CAR	PSA	Valeo V46.1x
CAR	PSA	Valeo VD46.1
CAR	Porsche	Bosch MG1CP007
CAR	Porsche	Bosch MG1CS047
CAR	Porsche	Continental SDI10
CAR	Porsche	Continental SDI21.x
CAR	Porsche	Siemens SDI4
CAR	Porsche	Continental SDI6
CAR	Porsche	Continental SDI7/8
CAR	Porsche	Continental SDI9
CAR	Renault	Bosch EDC16C3
CAR	Renault	Bosch EDC16C36
CAR	Renault	Bosch EDC16CP33
CAR	Renault	Bosch EDC17C11
CAR	Renault	Bosch EDC17C42
CAR	Renault	Bosch EDC17C84
CAR	Renault	Continental EMS3140
CAR	Renault	Continental EMS3141
CAR	Renault	Continental EMS3150
CAR	Renault	Continental EMS3155
CAR	Renault	Continental EMS3160
CAR	Renault	Continental EMS3161
CAR	Renault	Bosch MD1CS006
CAR	Renault	Bosch MD1CS016
CAR	Renault	Siemens SID305
CAR	Renault	Siemens SID306
CAR	Renault	Siemens SID307
CAR	Renault	Siemens SID310
CAR	Renault	Continental/Vitesco SID321
CAR	Renault	Valeo V50
HEAVY	Scania	Continental EMS EMD1	💎
HEAVY	Scania	Motorola EMS S6
HEAVY	Scania	Motorola EMS S7	💎
HEAVY	Scania	Continental EMS S8	💎
CAR	SsangYong	Delphi DCM3.7AP
CAR	SsangYong	Delphi DCM6.2AP
CAR	Subaru	Denso KS/DT
CAR	Suzuki	Bosch EDC16C3
CAR	Suzuki	Bosch ME17.9.5
CAR	Suzuki	Bosch ME17.9.51
CAR	Suzuki	Bosch ME17.9.6
CAR	Suzuki	Bosch ME17.9.61
CAR	Suzuki	Bosch ME17.9.64
CAR	Suzuki	Bosch MG1CS026
CAR	Toyota	Denso Diesel Gen. 1/2
CAR	Toyota	Denso Diesel Gen. 3
CAR	Toyota	Bosch EDC17C73
CAR	Toyota	Bosch EDC17CP07
CAR	Toyota	Denso Petrol Gen. 1/2
CAR	VAG	Delphi DCM3.7
CAR	VAG	Delphi DCM6.2
CAR	VAG	Bosch DQ380
CAR	VAG	Bosch DQ381 G1
CAR	VAG	Bosch DQ500 MQB
CAR	VAG	Continental DQ500 MQB
CAR	VAG	Bosch EDC16CP34
CAR	VAG	Bosch EDC16U1/ U31/ U34
CAR	VAG	Bosch EDC17C46
CAR	VAG	Bosch EDC17C54
CAR	VAG	Bosch EDC17C64
CAR	VAG	Bosch EDC17C74
CAR	VAG	Bosch EDC17CP04
CAR	VAG	Bosch EDC17CP14
CAR	VAG	Bosch EDC17CP20
CAR	VAG	Bosch EDC17CP24
CAR	VAG	Bosch EDC17CP44
CAR	VAG	Bosch EDC17CP54
CAR	VAG	Bosch EDC17CP74
CAR	VAG	Bosch EDC17U01
CAR	VAG	Bosch EDC17U05
CAR	VAG	Bosch INV CON 2.X
CAR	VAG	Bosch MD1CP004
CAR	VAG	Bosch MD1CP014
CAR	VAG	Bosch MD1CS004
CAR	VAG	Bosch MD1CS014
CAR	VAG	Bosch ME17.5.24
CAR	VAG	Bosch ME17.5.26
CAR	VAG	Bosch ME17.5.6
CAR	VAG	Bosch ME7.1
CAR	VAG	Bosch ME7.1.1
CAR	VAG	Bosch ME7.5.x
CAR	VAG	Bosch MED17.1
CAR	VAG	Bosch MED17.1.1
CAR	VAG	Bosch MED17.1.21
CAR	VAG	Bosch MED17.1.27
CAR	VAG	Bosch MED17.1.6
CAR	VAG	Bosch MED17.1.62
CAR	VAG	Bosch MED17.5
CAR	VAG	Bosch MED17.5.1
CAR	VAG	Bosch MED17.5.2
CAR	VAG	Bosch MED17.5.21
CAR	VAG	Bosch MED17.5.25
CAR	VAG	Bosch MED17.5.5
CAR	VAG	Bosch MED9.1
CAR	VAG	Bosch MED9.5
CAR	VAG	Bosch MG1CS001
CAR	VAG	Bosch MG1CS002
CAR	VAG	Bosch MG1CS008
CAR	VAG	Bosch MG1CS011
CAR	VAG	Bosch MG1CS031
CAR	VAG	Bosch MG1CS111
CAR	VAG	Bosch MG1CS163
CAR	VAG	Siemens PCR2.1
CAR	VAG	Siemens PPD1.x
CAR	VAG	Continental SIMOS10
CAR	VAG	Continental SIMOS11
CAR	VAG	Continental SIMOS12
CAR	VAG	Continental SIMOS15
CAR	VAG	Continental SIMOS16
CAR	VAG	Continental SIMOS18
CAR	VAG	Continental SIMOS19
CAR	VAG	Siemens SIMOS6
CAR	VAG	Siemens SIMOS7
CAR	VAG	Continental SIMOS8.x
CAR	VAG	Siemens SIMOS9
CAR	Volvo	Bosch EDC17CP22
CAR	Volvo	Bosch EDC17CP48
CAR	Volvo	Siemens SID803
CAR	Volvo	Siemens SID803A
CAR	Volvo	Denso VEA Version E
HEAVY	Volvo Truck	TRW EMS 2.3	💎
HEAVY	Volvo Truck	TRW EMS 2.3-ACM	💎
HEAVY	Volvo Truck	TRW EMS 2.4	💎

Generates a DTC A2L for import into WinOLS or similar software.
Only aviable for User with a valid license with 💎 PRO.
💎 Special Protocolls only aviable for 💎 PRO users.

Pricing

The VAT rate is based on your IP address. United States VAT rate: 0%
The total amount including the correct VAT will be displayed during the checkout process in the webshop.

WinOLS Solutions F7 Integration

💎 PRO Features

Some special protocols are available exclusively for PRO users. All CAR DTC protocols will be not affected now or in future. However, truck and agricultural ECUs often require unique solutions, so I decided to reserved this Protocolls for PRO users.

PRO features are included only with the two highest licenses: 3 sessions / 50 files per day and 4 sessions / 100 files per day. These are designed for professional users and provide access to advanced protocols for DTC removal on truck and agricultural ECUs. Many of these protocols are already in beta, and both current and future beta protocols will remain exclusive to PRO users. You can check the supported ECU list what protocols are available only for PRO users here.

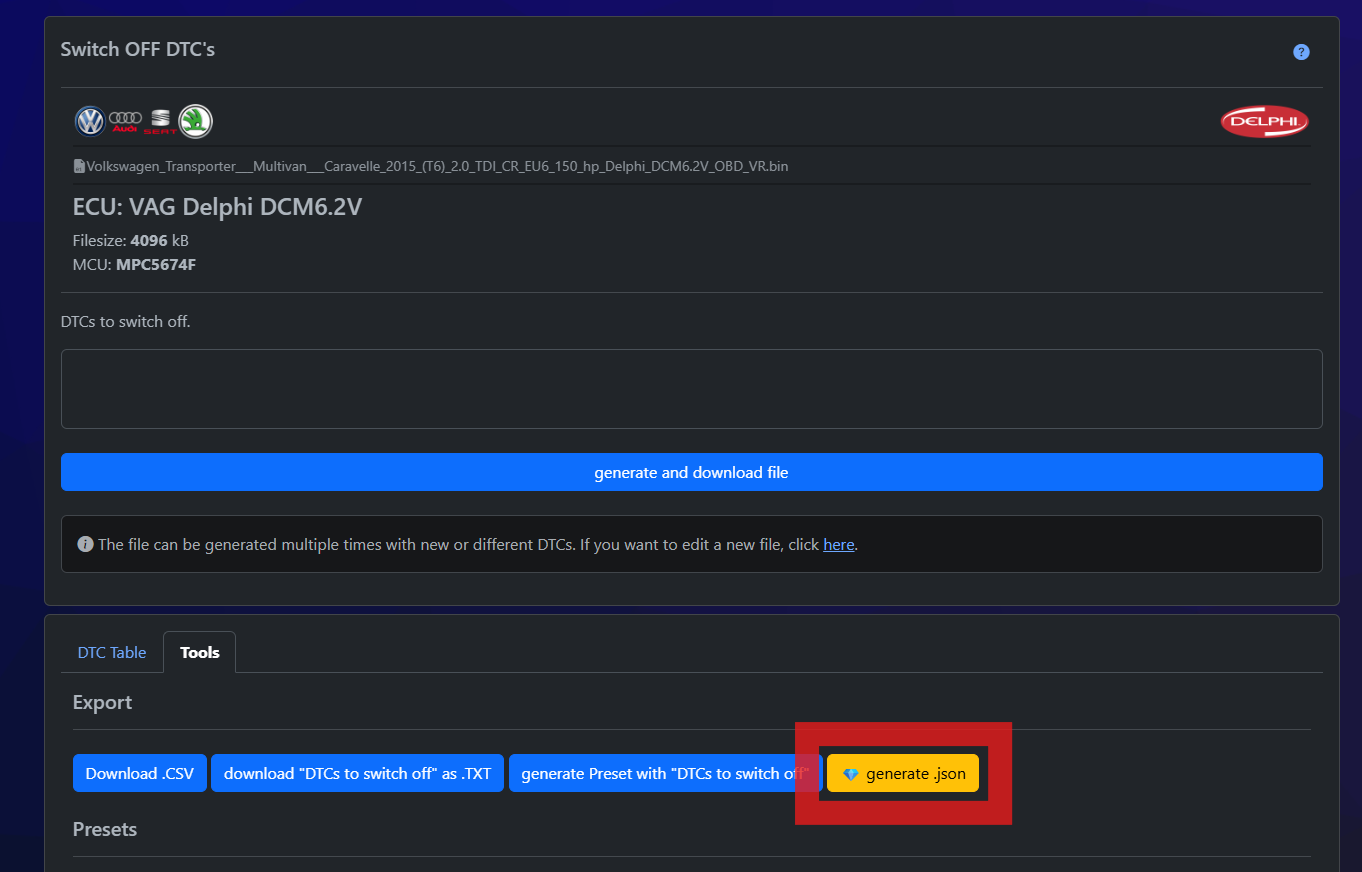

You can download now where possible JSON Mappacs for WinOLS with the PRO License. It is the successor to the A2L export, but with more information and a better structure. You can import the JSON Mappack into WinOLS without a Plugin.Than you can easily find the DTCs in your file and also get more information about the DTCs. The JSON Mappack is only available for PRO users and only for some ECUs, but I will add more ECUs in future. You can check the supported ECU list what protocols are available only for PRO users here.

If you allready have a PRO license, you can use these special protocols without any additional steps. But if you have a normal license and want to use the PRO features, you need to upgrade your license. You can do this in the License Management section of your user panel.
